Modular and lightweight batteries
Moduloo Ax & Bx

The Moduloo Ax & Bx lithium battery range is designed to provide maximum power in an extremely compact casing. It is one of the lightest solutions on the market. This product is available in two different versions:

Moduloo Ax: Ideal for applications where weight and space are critical.
Moduloo Bx: Versatile, robust, rack-mountable, and IP65-rated.

Plug-and-play, they feature a common modular architecture. Whether operating standalone or connected in series and parallel, these solutions
adapt to your design constraints. By multiplying the integration possibilities, the Moduloo Ax & Bx can easily be adapted to any footprint:

Powerful Compact Lightweight Scalable

High-performance
and integration friendly

The Moduloo Ax & Bx range is RoHS, CE, and UN 38.3 certified

The Moduloo Ax & Bx range

Moduloo Ax

Durable and modular

Moduloo Bx

Robust and waterproof

Derivative Product

Customized

At TYVA Energie, customer satisfaction is a must. It is in our DNA to meet market demands by offering comprehensive engineering services (custom design), certification support, and logistics guidance. In line with this commitment, the Moduloo Ax & Bx range is both CE and UN38.3 certified, while also compatible with the unique TYVA Refill reconditioning technology.

The Moduloo Ax & Bx range is RoHS, CE, and UN 38.3 certified

RoHS certification

RoHS certification ensures that our lithium batteries do not contain any harmful chemicals.

CE certification

This certification ensure our lithium batteries' compliance regarding requirements established by the European community regulation.

UN 38.3 certification

All our Moduloo Ax & Bx range is UN 38.3 certified to ensure safe, fast and economical transport.

Potential applications fields

Moduloo Ax & Bx: Unlocking new possibilities

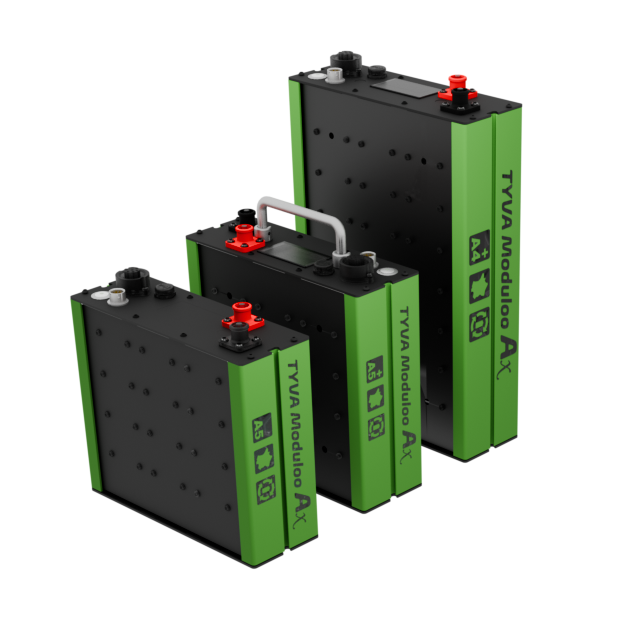

Moduloo Ax: Standard

This range integrates proven battery modules, BMS, and PDU technology. We have selected three standard form factors to offer plug-and-play batteries that
are ready for seamless integration across various applications.

Designed to meet the most demanding space constraints, the ultra-compact Moduloo Ax features an IP54-rated enclosure.

It ensures reliable protection against dust and water splashes while keeping
the overall weight to a strict minimum.

Nominal Voltages: Available in 14V, 25V, and 51V versions
Form factors : A5, A5+ and A4+
Lifecycle: 700 to 5,000 cycles (depending on temperature, DOD, and operating power)
Certifications: CE, RoHS, and UN 38.3 (ready for global transport)
Communication: CAN 2.0, SMBUS & I2C
Sustainability: Fully compatible with TYVA Refill technology (replaceable cells)

Standard Moduloo Ax: “Energy” cells

“Energy” cells are suitable for low to medium discharge current (robotics, AGVs, electric vehicles, etc.). The maximum discharge current is 90A for the most capacitive models.

Part number	Config	Nominal energy	Nominal capacity	Charge voltage	Charge / Discharge max current	Nominal voltage	Data	Format	Dimensions (mm)	Weight
TYREB_LC_A5P_X_14V	4S20P	980 Wh	67 Ah	16,8 V	25 A / 25 A	14,6 V	SMBUS et I2C	A5+	208 x 220 x 77	4,8 kg
TYREB_LC_A4P_X_14V	4S35P	1710 Wh	117 Ah	16,8 V	25 A / 25 A	14,6 V	SMBUS et I2C	A4+	323 x 220 x 77	8,5 kg
TYREB_PR_A5B_X_25V	7S10P	860 Wh	33,5 Ah	29,4 V	17 A / 80 A	25,55 V	CAN 2.0	A5	188 x 220 x 77	4,2 kg
TYREB_PR_A4P_X_25V	7S20P	1710 Wh	67 Ah	29,4 V	34 A / 90 A	25,55 V	CAN 2.0	A4+	323 x 220 x 77	8,5 kg
TYREB_PR_A5B_X_51V	14S5P	860 Wh	16,75 Ah	58,8 V	8,5 A / 40 A	51,1 V	CAN 2.0	A5	188 x 220 x 77	4,2 kg
TYREB_PR_A4P_X_51V	14S10P	1710 Wh	33,5 Ah	58,8 V	17 A / 80 A	51,1 V	CAN 2.0	A4+	323 x 220 x 77	8,5 kg

*X: choice of the front panels from A, B, C to D

Front panel A
(Standard Option)

Front panel B
(LCD Display Option)

Front panel C
(Handle Option)

Front panel D
(LCD Display + Handle Option)

Need high power?

“Power” cells are suitable for low to medium discharge current (robotics, AGVs, electric vehicles, etc.). We create custom solutions on request to adapt the power to your specific needs.

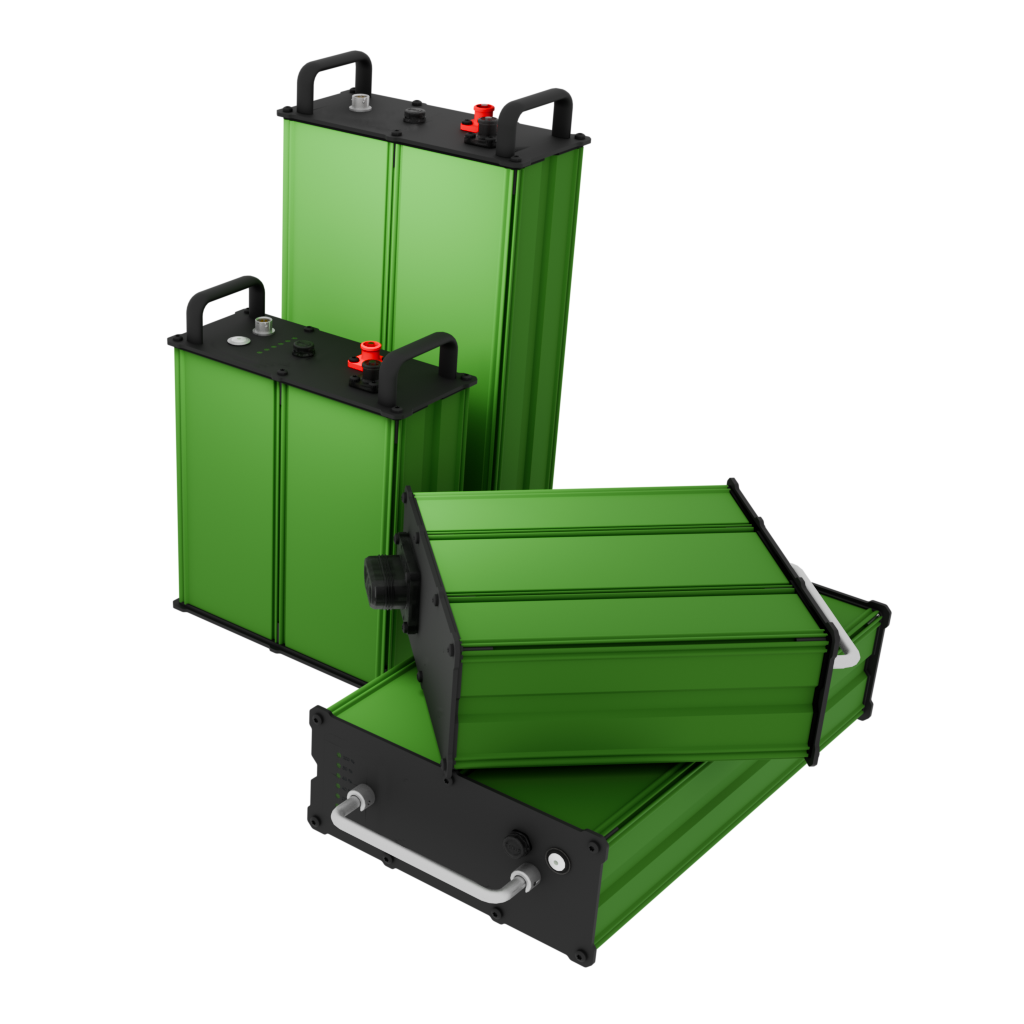

Moduloo Bx: Standard

Based on the same philosophy as the Moduloo Ax, the Bx version enhances robustness, increases energy capacity, and improves the IP rating. Available in two form factors, the Moduloo Bx is capable of providing up to 2 kWh.

Both blind-mate and front-panel connection types are proposed to enhance integration options.

Engineered for maximum durability, the Moduloo Bx features a robust, IP65-rated enclosure.

Nominal Voltages: Available in 25V and 51V versions
Form factors: Bx1 & Bx2 (Front panel) and BxR1 & BxR2 (Blind-mate)
Lifecycle: 700 to 5,000 cycles (depending on temperature, DOD, and operating power)
Certifications: CE, RoHS, and UN 38.3 (ready for global transport)
Communication: CAN 2.0
Sustainability: Fully compatible with TYVA Refill technology (replaceable cells)

Standard Moduloo Bx: “Energy” cells

“Energy” cells are suitable for low to medium discharge current (robotics, AGVs, electric vehicles, etc.). The maximum discharge current is 80A for the most capacitive models.

Part number	Config	Nominal energy	Nominal capacity	Charge voltage	Charge / Discharge max current	Nominal voltage	Rackmount Version	Dimensions (mm)	Weight
TYREB_PR_BX1_X_25V	7S8P	1022 Wh	40 Ah	29,4 V	17 A / 80 A	25,55 V	No	239 x 239 x 103	7,5 kg
TYREB_PR_BXR1_X_25V	7S8P	1022 Wh	40 Ah	29,4 V	17 A / 80 A	25,55 V	Yes	239 x 239 x 103	7,5 kg
TYREB_PR_BX1_X_51V	14S4P	1022 Wh	20 Ah	58,8 V	8,5 A / 40 A	51,1 V	No	239 x 239 x 103	7,5 kg
TYREB_PR_BXR1_X_51V	14S4P	1022 Wh	20 Ah	58,8 V	8,5 A / 40 A	51,1 V	Yes	239 x 239 x 103	7,5 kg
TYREB_PR_BX2_X_51V	7S16P	2044 Wh	80 Ah	29,4 V	32 A / 60 A	25,55 V	No	396 x 239 x 103	12,7 kg
TYREB_PR_BXR2_X_51V	7S16P	2044 Wh	80 Ah	29,4 V	32 A / 60 A	25,55 V	Yes	396 x 239 x 103	12,7 kg
TYREB_PR_BX2_X_51V	14S8P	2044 Wh	40 Ah	58,8 V	17 A / 80 A	51,1 V	No	396 x 239 x 103	12,7 kg
TYREB_PR_BXR2_X_51V	14S8P	2044 Wh	40 Ah	58,8 V	17 A / 80 A	51,1 V	Yes	396 x 239 x 103	12,7 kg

*X: choice of the front panels

Front panel A, B, C or D for the non-rackable version (Front Panel Connector)
Front panel E, F, G or H for the rackable version (Blind-mate Connector)

Front panel A
(Standard Option)

Front panel B
(On/Off Button Option)

Front panel C
(Bargraph Option)

Front panel D
(On/Off Button + Bargraph Option)

Front panel E
(Standard Option)

Front panel F
(On/Off Button Option)

Front panel G
(Bargraph Option)

Front panel H
(On/Off Button + Bargraph Option)

Need high power?

“Power” cells are suitable for low to medium discharge current (robotics, AGVs, electric vehicles, etc.). We create custom solutions on request to adapt the power to your specific needs.

Derivative Product

For seamless compatibility with your system, the Ax & Bx architecture is designed to evolve and integrate new features. The TYVA Energie engineering team can assist you throughout your development to optimize your integration.

Performance: Custom voltages, capacities, discharge currents, and archi.
Control & Interfaces: HMI, DC/DC conversion, remote switches, and specific connectors.
Communication Protocols: CANBUS, SMBUS.
Design & Dimensions: Tailor-made enclosures and front panels.
Environmental Resistance: Integrated thermal management (heaters), upgraded
watertighness, etc.
Integration: Sub-assemblies and Corepacks.
Custom Engineering: Dedicated R&D studies to meet any specific demands.
